Description

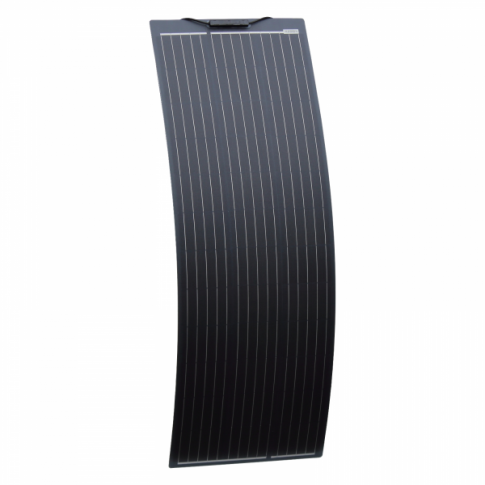

Solar panel specifications (per solar panel):
- Peak power: 130W
- Maximum power voltage: 20.5V
- Maximum power current: 6.35A
- Open circuit voltage: 24.0V
- Short circuit current: 6.66A
- Dimensions: 1460 x 505 x 2 mm
- Weight: 2.38 kg

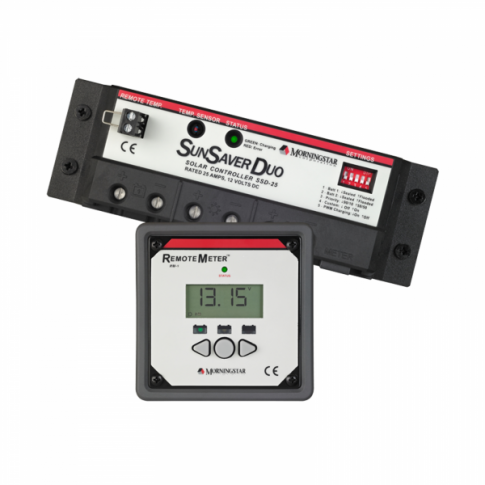

25A 12V dual battery solar charge controller specifications:
- Rated charging current: 25A
- Fully automated operation for 12V system
- Maximum solar input power: 400W or 25A
- Minimum battery voltage: 1V
- 3 pairs of terminals (battery 1, solar, battery 2)
- LED indicator to show operational state and system errors
- Temperature sensor for temperature compensation of charging (-30mV/C/12V)
- Various protection features (over charge, short circuit, reverse polarity etc)
- Self-consumption: 5.5mA at night, 10mA when charging, remote meter 6-15mA
- Grounding: negative common ground
- Cable lenth for remote meter: 10m
- Working temperature: -40°C to +45°C
- Terminals for wire up to 16mm2
- Size of controller: 168.8 x 55.1 x 34.5 mm
- Size of meter: 97 x 97 x 31 mm
- Weight: controller 260g, meter 135g
- Multiple mounting holes for ease of installation

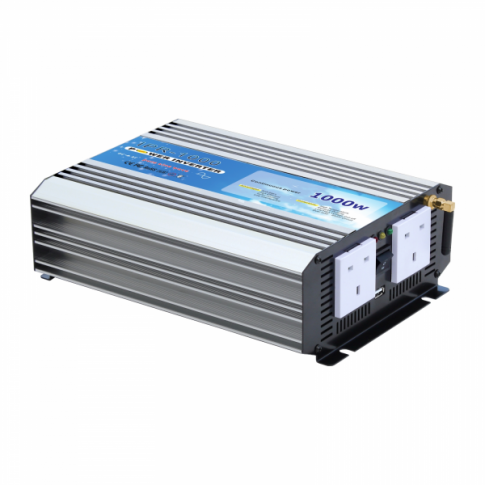

1000W 230V pure sine wave inverter specifications:
- Input: 12V (10-15V) DC
- Output: 230-240V AC
- Output frequency: 50 Hz
- Output waveform: pure sine wave
- THD: < 3%
- Continuous power: 1000W
- Surge power: 2000W
- Peak efficiency: 90%
- Low battery shut down: 10.0V +/- 0.5V DC
- Low battery alarm: 10.5V +/- 0.5V DC
- High voltage shut down: 15.5V +/- 0.5V DC
- Thermal shut down: 60 +/-5°C
- Rated USB output: 2A
- Wireless remote control radius: Approx. 50m
- Size: 325 x 220 x 95 mm
- Weight: 2.7 kg

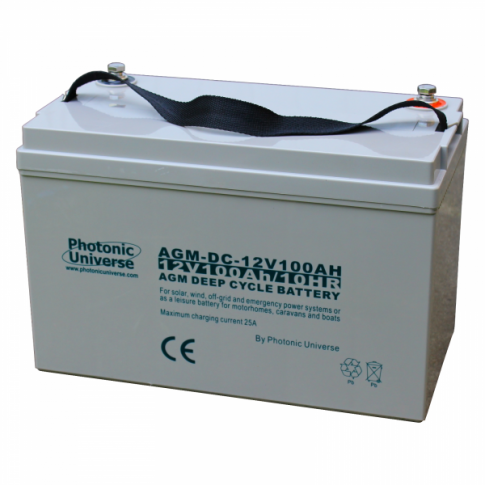

Battery specifications:
- Nominal voltage: 12V
- Nominal capacity: 100Ah (10h rate) / 105Ah (20h rate)
- Maximum charging current: 25A
- Self-discharging rate: <3% per month
- Cycle lifetime at 30% D.O.D.: 1000-1100
- Pressure control: safety valve installed
- Terminal type: F13 (bolts and washers included)
- Operating temperature: from +10°C to +40°C
- Size: 331 x 173 x 217 mm
- Weight: 30.0 kg
Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panel, charge controller, inverter, and batteries, and therefore delivered in a separate package.
The battery is covered by a 1 year repair or replacement warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions. The solar charge controller is covered by a 5 year manufacturer warranty.
In addition, the solar panel comes with a 3 year workmanship warranty which covers material and production defects. The solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
For installation advice, please click on the Installation tab.
