Description

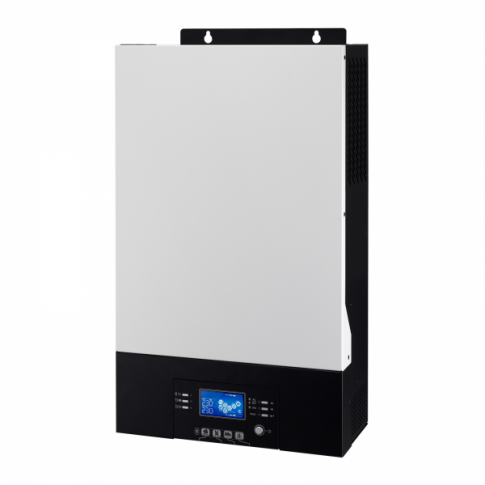

UPS specifications (per unit):
- Nominal battery voltage: 48V
- Continuous power output: 5000W/5000VA (220-240V AC)
- Surge power: 10000VA
- Output frequency: 50Hz – 60Hz
- Output waveform: Pure sine wave
- Maximum solar input power: 4000W
- Maximum open circuit solar input voltage: 145V (open circuit)
- MPPT operating solar voltage: 60 – 115 V
- Maximum solar charging current: 80A
- Maximum mains AC charging current: 60A
- Maximum combined charging current: 140A
- Peak efficiency: 93%
- Solar / AC charger max efficiency: 98%
- Operating temperature: 0°C to 55°C
- Supplied with USB drive, PC connection cable and PC software CD
- Size: 52.5 x 30.3 x 14 cm
- Weight: 13.5 kg

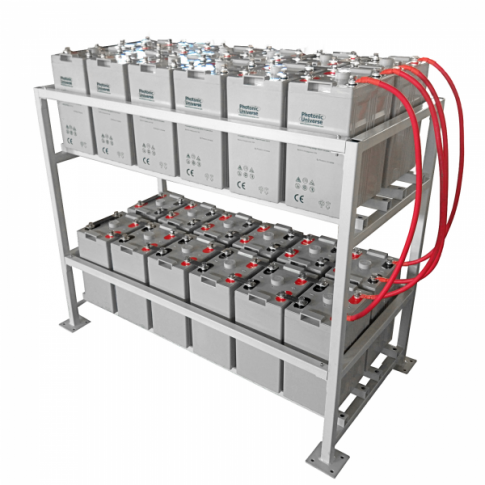

Battery specifications (entire 48V battery bank):
- Nominal voltage: 48V
- Nominal capacity: 24kWh
- Maximum charging current: 100A
- Charging voltage: cycle use 56.4V, standby use 54.8V
- Temperature compensation: cycle use -120mV/°C, standby use -72mV/°C
- Size: 1290 x 1140 x 670 mm (when positioned in racking)
- Weight: 720 kg (including racking)
Please note: due to our warehouse arrangements, the accessories may be shipped from a different warehouse to the hybrid inverters and battery bank, and therefore delivered in a separate package.
The battery bank is covered by a 1 year repair or replacement warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The hybrid inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
For installation advice, please click on the Installation tab.
